Product manufacturer:
Xi’An Gaoke Building Materials Technology Co., Ltd.(GKBM) is a
modern manufacturing enterprise, invested by Xi’An Gaoke Group, a
Top 500 China Enterprises and a leading enterprise in Xi'an
High-tech Zones. It is a key enterprise of new building materials
in High-tech Zones, Xi’An, Shaanxi, China, it has gradually
developed into an integration service provider of new building
materials and a promoter of strategic emerging industries. The
company's total assets are nearly 4 billion yuan, with more than
1,800 employees. It owns 6 subsidiaries (branch) companies, 3
holding companies, and 6 major production bases. The industry spans
high-end plastic steel profiles, aluminum profiles, high-end doors
and windows, building pipelines, municipal pipelines, gas
pipelines, new decoration materials, smart cities, new
infrastructure, new environmental protection and other fields.
About UPVC Profiles:
UPVC profiles refer to Unplasticized PVC extruded profiles used for
making Windows & Doors. As early as the end of the 1950s PVC
profiles have appeared in Germany and put into use.
GKBM is the Top 3 Manufacturer of uPVC profiles in China.
About Triple Track Window Frame
Rail sliding windows refer to three sliding windows equipped with
pulley rails, which generally require three or more to form a
triple track sliding window. In addition to simple and convenient
opening methods and convenient cleaning, three-rail sliding windows
can open two-thirds of the space, making more effective use of
space and achieving good ventilation effects.
Greenpy 88 sliding uPVC Profiles
New 88B series uPVC Profiles for Sliding Window/Door
1. The visual surface wall thickness is greater than 2.5mm
2. Three-chamber structure design, so that the doors and Windows
thermal insulation performance is better
3. The customer can choose the appropriate thickness of the rubber
strip according to the corresponding glass thickness, and conduct
the glass test installation verification
4. The arrow is installed in the outdoor direction
88 uPVC window profiles features:
| Thermal Insulation | Grade 5 | K≤2.3W/(m2·k) |
| Airtight | Grade 3 | 3.0≥q1>2.5 |
| Sound Proof | Grade 4 | Rw≥35dB |
| Watertight | Grade 4 | 350«△P<500 |
| Wind Load Resistance | Grade 4 | 2.5≤P<3.0 |
88 uPVC profiles specifications:
Cross section: 88mm
Profile type: window frame, window sash, T mullion, door sash, door
frame, mullion;
88 triple track frame, 62 Double-track door frame
88 fixed frame
88 Welded integrated frame
88 Fixed box
88 small sash
88 door sash
Color: white, brown, blue, etc.
Processing: extrusion, co-extrusion, laminated, entire body
coloring
uPVC window profiles accessories:
glazing bead: single glazing bead, double glazing bead, triple
glazing bead;
Shutter / frameless door closure
Protective cover
Shutter blade
casement screen sash
outward opening transfer frame
coupling: small coupling, big coupling, I shape coupling,
seal strip/gasket,
post: square post, 45 degree post, round post, random post
enhance mullion slot
cover, steel liner, etc.
Steel lining is the theoretical size, when the customer selects the
steel lining, the profile steel lining cavity should be measured or
trial-installed.

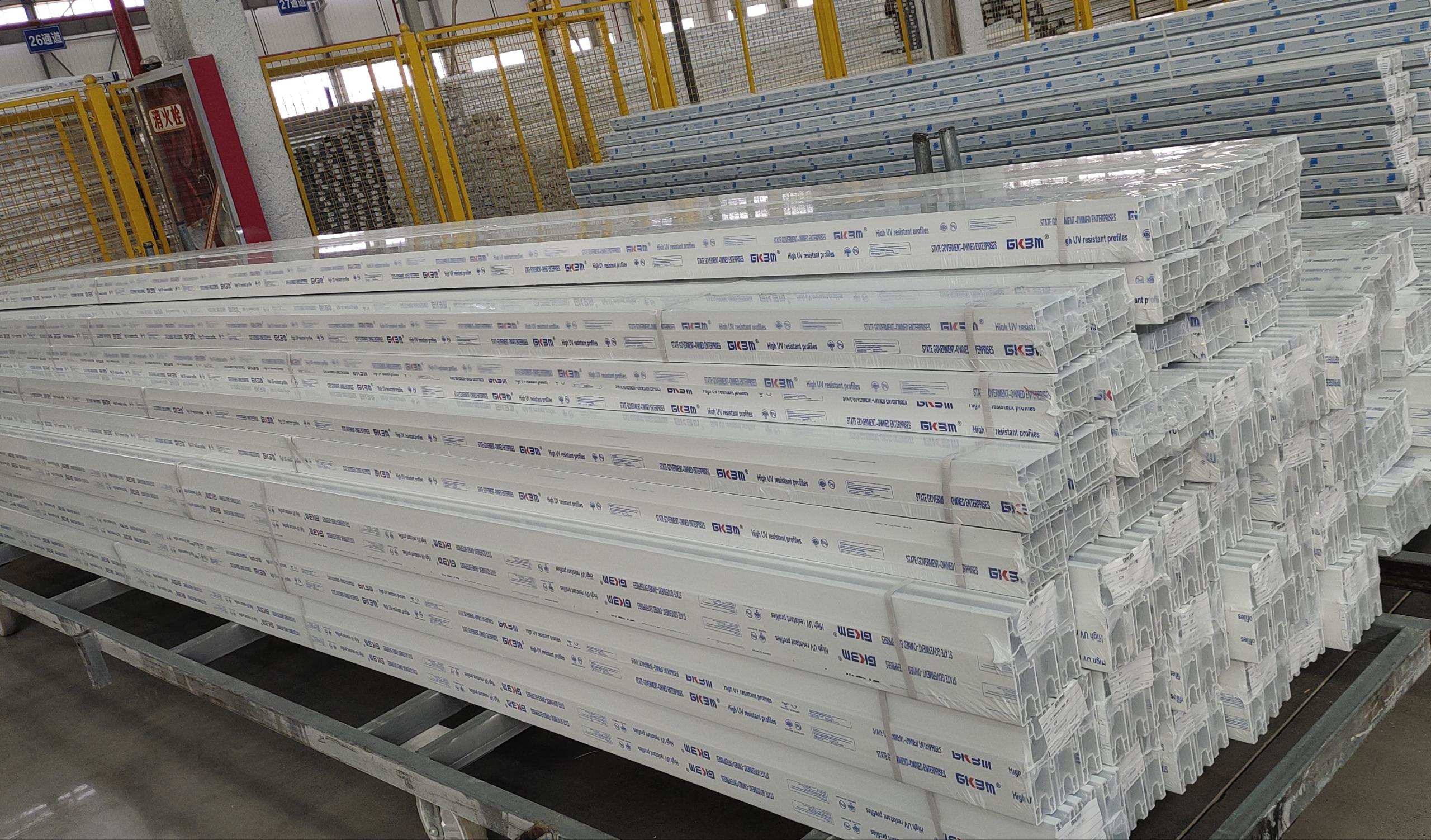

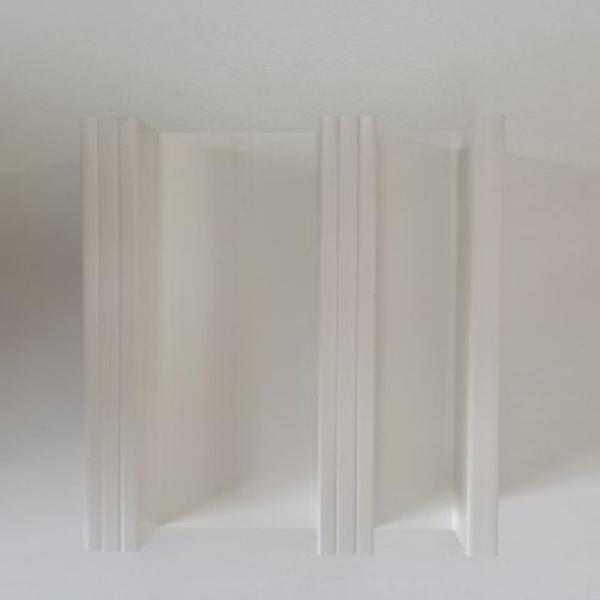

Product pictures:
