GKBM 72 uPVC Casement Window
uPVC Profiles Manufacturer:
Xi'An Gaoke Building Materials Technology Co., Ltd (1999). There
are 2 production bases of uPVC profiles. GKBM Jixian plastic
materials production base was officially put into operation in June
2021. It is located in Jixian Industrial Park, Zhouzhi County,
covering an area of 157,220 sqm. It is one of the leading
industries of new building materials under GKBM, and an smart and
modern enterprise integrating the design, research, development,
manufacturing, and installation of high-end u-PVC profiles,
eco-friendly panels, high-end doors and windows, new decoration
materials.
It is also among the Top 5 manufacturers of building materials. Its
annual production capacity includes 150,000 tons of high-end u-PVC
profiles, 500,000 sqm of high-end system doors and windows, and 5
million sqm of SPC flooring.
About uPVC Profiles:
UPVC profiles refer to Unplasticized PVC extruded profiles used for
making Windows & Doors. As early as the end of the 1950s PVC
profiles have appeared in Germany and put into use.
GKBM is the Top 3 Manufacturer of uPVC profiles in China.
GKBM 72 Casement uPVC Profiles
1. The visible wall thickness is 2.8mm, and the non visible is
2.5mm. 6 chambers structure, and energy-saving performance reaching
national standard level 9.
2. Can install 24mm and 39mm glass, meeting the requirements of
high insulation windows for glass; The minimum Heat transfer
coefficient can reach 1.3-1.5W/㎡k when three layers of glass are
used together.
3. GKBM 72 casement three seal series can achieve both soft sealing
(large rubber strip structure) and hard sealing structure
(installation of shawl). There is a gap on the groove of inward
opening sash. When install the large gasket, there is no need to
tear it. When install hard seal and the auxiliary profile of 3rd
seal, please tear the gasp on the inward opening sash, install the
adhesive strip on the groove to connect with the auxiliary profile
of 3rd seal.
4. The casement sash is a luxury sash with a goose head. After the
melting of rain and snow in cold area, ordinary sash gasket will
freeze due to lower temperatures, causing windows unable to be
opened or gaskets to be pulled out when opened. To solve this
problem, GKBM designs luxury sash with a goose head. Rainwater can
directly flow out along the window frame, which can completely
solve this problem.
5. The frame, sash, and glazing beads are universal.
6. 13 series casement hardware configuration and the external 9
series are easy to select and assemble.
7. Available colors: white, glorious, grained color, full body and
laminated.
Our Certificate & Honors:
ISO9001
20 Drafting Standards
23 Appraisal of New Technology
50 Patents
80 Technological Breakthrough
Why choose us:
1. High quality raw materials
2. Exclusive environmentally friendly formula
3. Advanced equipment and molds
4. Strong R&D team
5. Strict quality control
6. ODM&OEM
7. Professional after-sales service
8. One stop building materials integration service provider

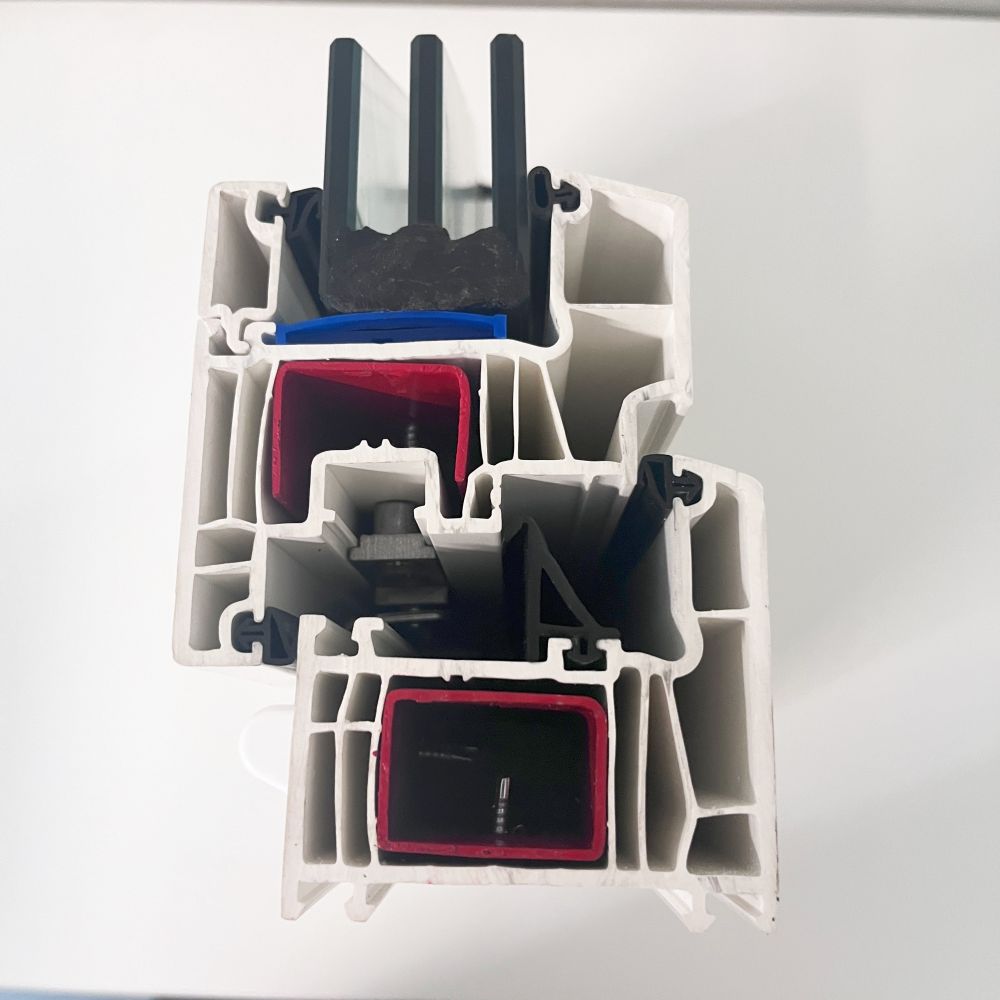

Product Picture:
