GKBM GL-S5565-1
New Eco-friendly E0 Formaldehyde Unilin Click Granite Grain Stone
Polymer Composite SPC Flooring
Manufacturer: GKBM
Brand: Greenpy
Series: Granite Grain Series

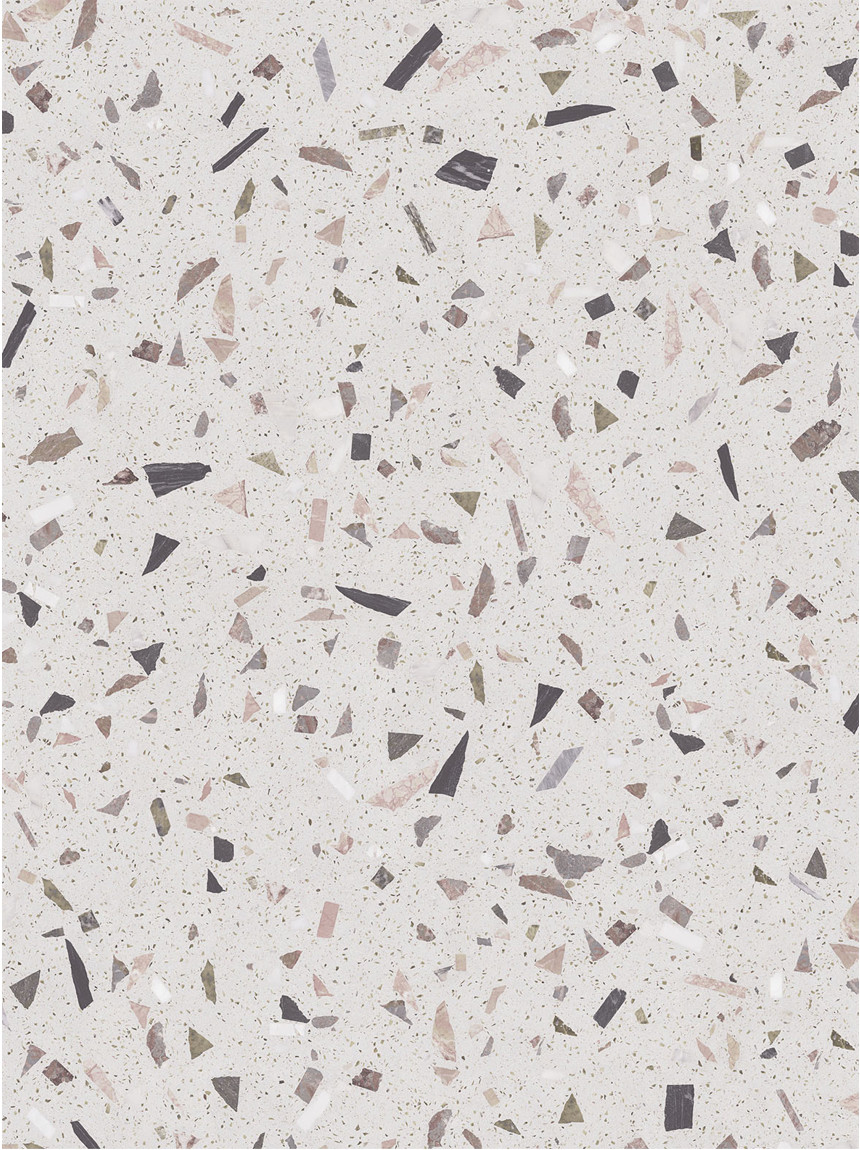

Decoration layer: floral granite grain
Product Name: Stone Plastic Composite Flooring (SPC Flooring)
Normal size: 1220*183mm (7*48”), 304.8*609.6mm (12*24”)
Thickness: 4mm, 5mm, 5.5mm, 6mm
Wear Layer: 0.3mm, 0.4mm, 0.5mm, 0.6mm
IXPE mute mat (optional)
IXPE thickness: 1 mm, 1.5mm, 2 mm
Application: home, school, kindergarten, dormitory, postpartum care center,
office, hotel,
gym, hospital, library, shopping mall, store, dancing room,
training room, exhibition hall,
fitness room, drawing room, basement, Eco-Industrial zone, etc.
Formaldehyde: E0
Fireproof: B1
Antibacterial species: Staphylococcus, E.coli, fungi
The antibacterial rate against Escherichia coli and Staphylococcus
aureus reaches 9999%
Residual indentation: 0.15-0.4mm
Heat Stability: Dimensional change rate ≤0.25%,
Heating warpage: ≤2.0mm,
Cold and hot warpage: ≤2.0mm
Seam Strength: ≥1.5KN/M
Warranty: 20-30 Years
Packing: Carton
Single pack: 1238*195*55mm
13 pcs/carton; 2.9m2/carton.
Specificattions
Advantages
Note:
If you need 90° herringbone splicing method, please contact the
factory for OEM service and MOQ.
Floor Installation Loss
Under normal circumstances, for normal splicing method, the floor
paving loss is 3% to 5% of the actual floor area. For herringbone
pattern splicing method, the paving loss is about 10% to 13% of the
actual floor area.
For special room structures or special needs, the floor loss is
subject to actual loss.
Installation Notes:
1.The temperature should be kept between 10-30 °C;
Place SPC floors at a constant temperature for 24 hours before
paving;
the humidity should be kept within 40%.
2. Basic ground requirements:
(1) The height difference within the 2m level shall not exceed 3mm,
otherwise self-leveling cement construction is required to level
the ground.
(2) If the ground is damaged, the width should not exceed 20cm and
the depth should not exceed 5m, otherwise it needs to be filled.
(3) If there are protrusions on the ground, it must be smoothed
with sandpaper or leveled with a ground leveler.
3. It is recommended to lay a silent pad (moisture-proof film,
mulch film) with a thickness of less than 2mm first.
4. A minimum 10mm expansion joint must be reserved between the
floor and the wall.
5. The maximum length of horizontal and vertical connection must be
less than 10m, otherwise it must be cut off.
6. During the installation process, do not use a hammer to forcibly
hit the floor to prevent damage to the floor slot (groove).
7. It is not recommended to install and lay it in places such as
bathrooms and toilets that are soaked in water for a long time.
8. It is not recommended to lay in outdoor, open-air balcony sun
room and other environments.
9. It is not recommended to lay it in places that are not used or
inhabited for a long time.
Maintenance:
1. Use a professional floor-specific cleaner to clean up the floor
dirt, and maintain it every 3-6 months.
2. Avoid scratching the floor with sharp objects, do not push or
pull when placing furniture, you’d better put protection pads
(covers) on the table and chair feet.
3. Avoid direct sunlight for a long time, and you can block the
direct sunlight with curtains, glass heat insulation film, etc.
4. If exposed to a lot of water, please remove as soon as possible,
and reduce the humidity to the normal range.
Ordering Info:
| Item | Code | Description |
| Model | GL-S5565-1 | |
| Size | A | 183*1220mm (7*48“) |
| B | 304.8*609.6mm (12*24“) |
| C | customized size |
| Thickness | 40 | 4mm |
| 50 | 5mm |
| 55 | 5.5mm |
| 60 | 6mm |
| Wear Layer | TH: | 0.3mm |
| FR | 0.4mm |
| FV: | 0.5mm |
| FF: | 0.55mm |
| SX: | 0.6mm |
| IXPE (optional) | N | Without |
| W | With |
| IXPE Thickness | 10 | 1mm |
| 15 | 1.5mm |
| 20 | 2mm |
