Dimex Edelweiss E90 Passive Window System Profile

Manufacturer:
DIMEX is a German specialist of uPVC window/door profiles and systems. It was founded in Germany in 1933, with about 90 years history till now. GKBM acquired it in 2010.

About UPVC Profiles:
UPVC profiles refer to Unplasticized PVC extruded profiles used for making Windows & Doors. As early as the end of the 1950s PVC profiles have appeared in Germany and put into use.

Dimex 90 uPVC Casement Profiles

DIMEX E90 passive window system is certified by the Passive House Institute(PHI) of Germany and is certified to be used in "phB cold regions". DIMEX E90 was designed to be warm in winter and cool in summer, with low energy consumption windows based on the German high energy standards.This is a system window solution for efficiency, building appearance and good comfort. While "passive design" applies the natural principles of sunlight, wind, temperature and humidity in nature, does not rely on conventional energy consumption as much as possible, and improves and creates the living environment with architectural methods of planning, design and environmental configuration. This series is a German 7-chamber 3 -seal structure with transverse chambers and stiffeners designed to prevent sinking of the inner chamber.

E90 Passive Window Systems Features:

1.System depth: 90mm - 7 Chambers

2.System Uf 0.90~1.0 W/·K

3.Air tightness: Grade 8 [ q1 ≤0.5m3/(m·h); q2 ≤1.5m3/(·h) ]

4.Water tightness: Gr.6 (P ≥ 700)

5.Wind load resistance above Grade.8 (P3 ≥ 4.5 KPa)

6.Sound insulation :Gr.5 (Rw + Ctr ≥ 400dB; Rw + C ≥ 400dB)

7.Heat preservation: Gr.10 (K< 1.1 W/·K)

8.The hardware is versatile and easy to select and assemble

9.Glazing width range from 40mm to 60mm

Specifications:

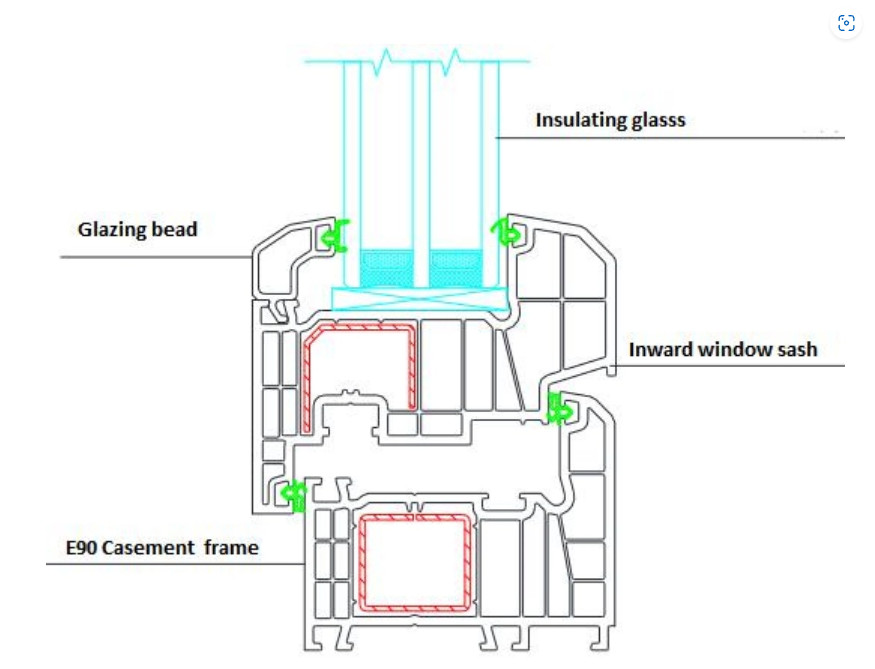

Cross section: 90mm
Profile type: frame, sash, mullion
Color: white, brown, blue, etc.
Processing: extrusion, co-extrusion, laminated, entire body coloring

Accessories:
glazing bead, coupling, seal strip, post, cover, etc.

Certificates:
SKZ, ift, CE, TUV, SGS, ISO9001.

Pictures:
